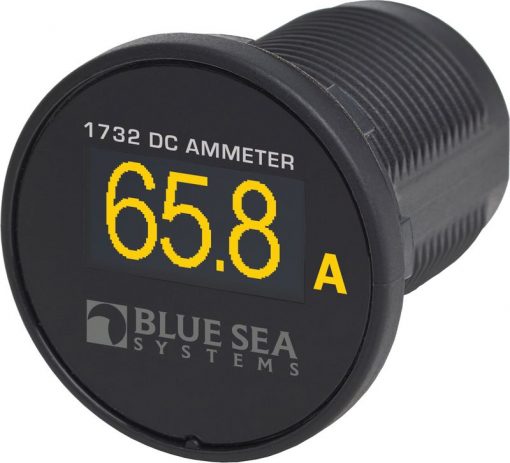

This compact meter monitors DC Amps on a bright, waterproof, daylight readable OLED screen.
Its compact size enables mounting in any convenient location.
This could easily fit on the dashboard of any center console or open boat, in the dashboard of a car, beside the captains bunk,
in the engine room, on the engine control panel, or anywhere you want a bright, easy to read, compact, accurate Ampmeter.

Features

Measures current on the positive or negative side
Compact size Displays temperature in Fahrenheit or Celsius
Reverse polarity protected
Mounts in a comon 1-1/8 inch hole

Specifications

Nominal Voltage 12V / 24V DC
Voltage Range 8V-36V DC
Maximum Operating Current 15mA
Resolution 0.1A
Accuracy +/- 2%

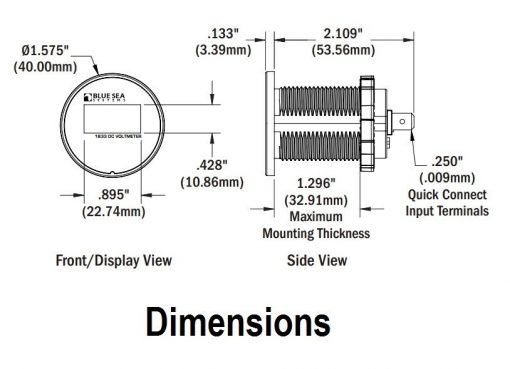

Cutout Dimensions 1-1/8″ (29mm) diameter

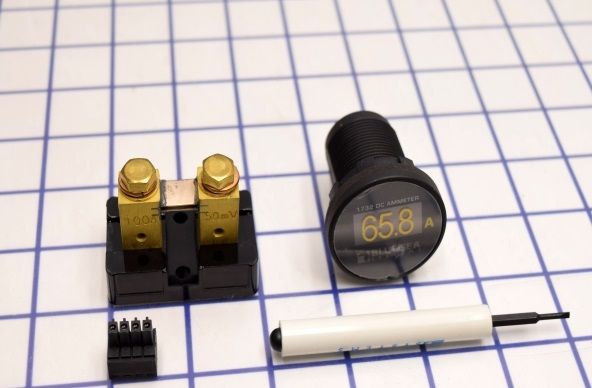

Shunt (included) 1x 9230 (100A/50mV)
Intermittent: 5 min. 110A
Cranking: 30 sec. 175A
