The CZone Contact 6 PLUS system delivers a cost-effective solution that
simplifies installation with the addition of the new Contact 6 PLUS, the
CZone Waterproof Keypad and the innovative new Smart Harness.
The Contact 6 PLUS system reduces installation time, network component
cost and delivers a robust electrical system with fewer connection points
than a conventional installation.

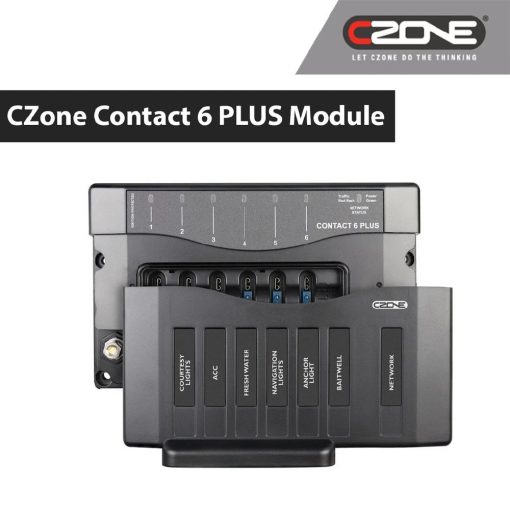

Utilising proven CZone digital switching technology the Contact 6 PLUS is a robust and affordable digital switching solution. Featuring 6x 15A solid state ignition protected fused outputs with circuit bypass for system redundancy. The Contact 6 PLUS can be networked into an existing CZone system or installed stand-alone with the CZone Waterproof Keypads or compatible MultiFunction Displays.

Circuit dimming & smooth start capability
Status LED’s for all outputs
Ultra low current draw
Built-in timer functions for circuits like live bait tanks
Voltage monitoring on the NMEA2000 Network
Built-in Load Shedding allows non-essential loads to be turned off to preserve battery life
Built-in default configurations selectable via dip switch
Affordable add-on module to larger CZone systems
Blown fuse detection and warning

Contact 6 PLUS System

Combine Contact 6 PLUS with the Waterpoof Keypad and Smart Harness to achieve a very affordable digital switching system. Simple installation with out-of-the-box plug-and-play configurations, the Contact 6 PLUS System brings powerful and trusted CZone digital switching technology to a very attractive price point.

Affordable digital switching solution
Plug and play out of the box functionality
PWM circuit dimming
Equipped with advanced core CZone feature set like timers and modes
ABYC compliant ignition protected internal fuse panel with mechanical circuit bypass
