Model : FSTB15120000A00 and this includes the reversing solinoid
Quick Nautical Equipment Tumbler TB4
-AISI Stainless steel 316 base and drum.
-IP67 Watertight motor.
-Anodized aluminium gearbox.
Tumbler TB4 1512 – Drum diameter: 142 mm
For boats from 16 m to 22 m (52-72 ft)
(for reference only, may vary according to the boat type and the anchor-rode type)
?* Shaft and studs for greater deck thicknesses can be supplied on request.

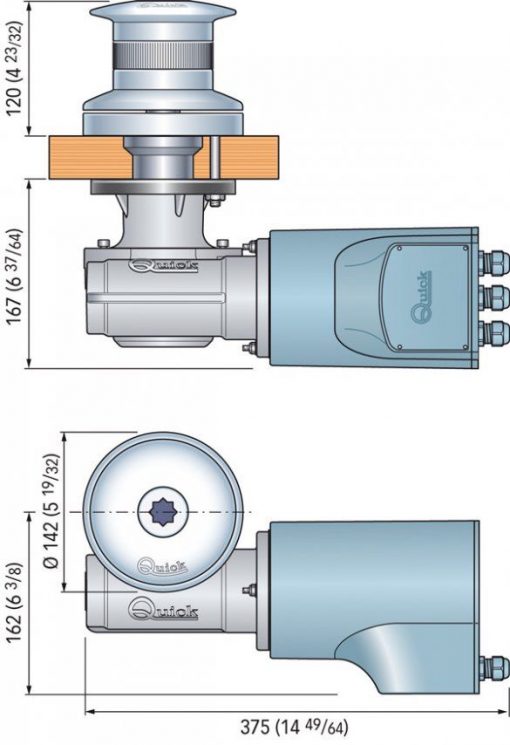

Drum : Ø 142 mm
Motor Power : 1500 W
Input voltage : 12 V
Max pull : 1100 kg
Max working load : 450 kg
Working load : 150 kg
Chain speed and working load : 16.5 m/min
Current absorption and working load : 155 A
Deck thickness : 25-50 mm
Weight : 21.2 kg
