EasyStart – The most advanced & effective soft starter for all A/C applications
EasyStart – is a one-of-a-kind, custom-developed soft starter for single-phase motors. It employs a 4-part start ramp sequence that is self-optimizing, resulting in the lowest possible start-up current. EasyStart can deliver 65-75% start current reduction as compared to a compressor’s LRA (locked-rotor amperage). EasyStart is the perfect solution that allows an air conditioner or refrigeration compressor to operate on a generator, inverter, or limited utility power when it would otherwise not have functioned. It can also be applied to air compressor and fluid pump motors.
Easy Start your A/C without buying a second or bigger generator or inverter
Run 2 air conditioners on a 30-Amp cord. (Note: Each A/C requires an EasyStart unit)
Sleep, with less noise, and cool all through the night
Run your A/C with more appliances at the same time
Add an A/C unit at low cost by putting an inexpensive EasyStart on each. Avoids expensive rewiring of the entire RV to upgrade to 50-amp.

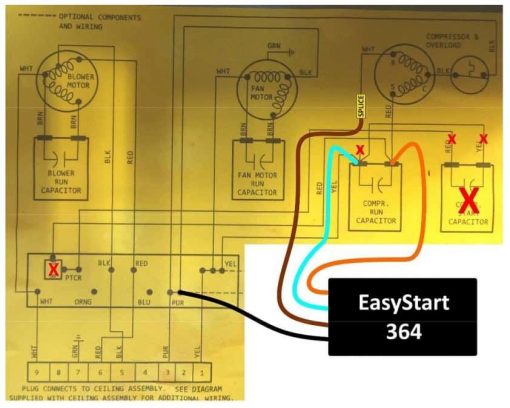

Convenient installation kit for wiring an RV Rooftop A/C unit is available. (sold separately)
Has numerous specialized fault checks not found in any other soft starter to provide further protection for your compressor.

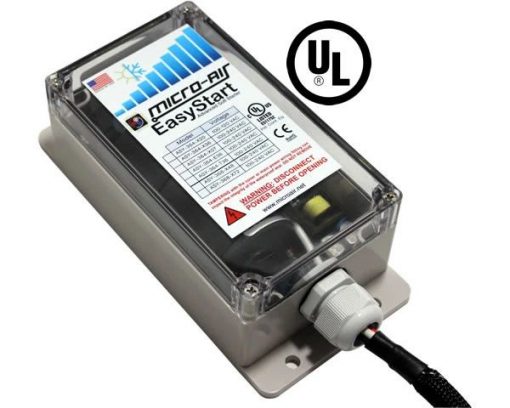

The EasyStart 364 is capable of supporting up to a 36000 BTU (3 ton) compressor. It includes a unique water resistant and UV protected enclosure with an integrated mounting flange.
Specialized models exist for various applications.
All of our EasyStart 364 models come equipped with side-angled “flag connectors to attach to the run capacitor in your installation. They work well in any limited space. If you prefer, you may clip them off in favor of your preferred connector.
Voltage and Motor Support:
XO7 and X36 models support 115 or 230VAC/50-60Hz motors.
X20, E36 and T36 support only 115V/50-60Hz motors.
Models are designed to fit a specific range of compressors.
Check out our model selector to make sure you get the right one.
IMPORTANT INSTALLATION NOTE FOR CRUISAIR® MARINE CUSTOMERS ONLY:
When installing EasyStart into 220-240V SMX A-288/282/281 control applications that use the triac to switch power to the compressor, it is necessary to replace the triac with a relay. If the triac is not replaced, the EasyStart and any pump relay triggers may suffer damage and ultimately fail. A replacement relay specifically designed for this application is available at this link. Please note that this is not required for 115V SMX applications, and the triac is still safe to use.
